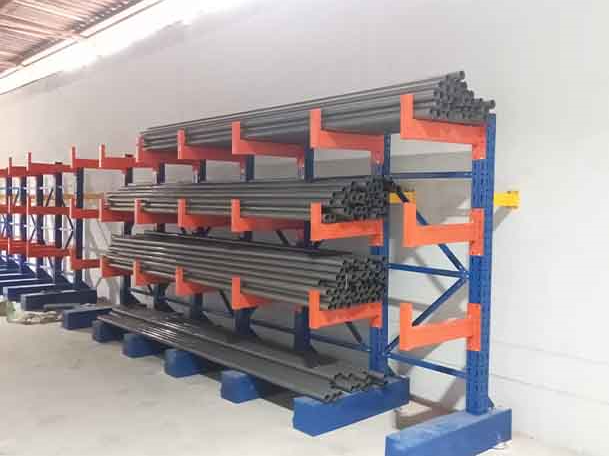

Cantilever Rack
2000 kg UDL Per Arm
Our Cantilever Rack is designed for safe and efficient storage of long, bulky, and irregularly shaped items. With a Uniformly Distributed Load (UDL) capacity of up to 2000 kg per arm, these racks are ideal for storing pipes, timber, steel bars, furniture, panels, and other oversized goods.
Whether for warehouses, steel yards, woodworking shops, or industrial facilities, Cantilever Racks offer strength, accessibility, and flexibility for heavy-duty storage needs.
Key Features
| High Load Capacity | Supports up to 2000 kg UDL per arm, ensuring safe storage of heavy and long materials. |
| Flexible Storage | Open-front design allows easy loading and unloading of lengthy or irregular-shaped goods. |
| Durable Construction | Manufactured from premium-grade steel with a powder-coated or galvanised finish for longevity. |
| Configurable Design | Single-sided or double-sided racks available, adjustable arm heights for maximum versatility. |
| Safe & Stable | Heavy-duty uprights, arms, and base plates provide excellent strength and stability. |
| Versatile Applications | Perfect for steel plants, timber yards, warehouses, furniture storage, and industrial workshops. |
Cantilever Racks – Product Overview
Prince Foils Products is one of India’s leading manufacturers of heavy-duty racking systems. Our Cantilever Racks are specially designed for storing long, bulky, and irregularly shaped items such as pipes, tubes, timber, steel bars, panels, and furniture. The open-front design ensures easy accessibility and efficient handling with forklifts or manual loading.
How It Works
Materials are stored on horizontal arms supported by strong vertical uprights. Forklifts or workers can place and retrieve items easily without front column obstructions. Arm levels can be adjusted to suit different product heights, and racks can be configured as single-sided or double-sided for maximum flexibility.
Applications
- Steel & Metal Industry – storage of pipes, bars, tubes, and metal sheets.
- Timber & Wood – storing planks, plywood, panels, and lumber.
- Furniture & Interiors – ideal for sofas, frames, panels, and bulky furniture parts.
- Warehousing & Logistics – long and irregularly shaped products storage.
- Automotive & Industrial – storing moulds, tools, and oversized spare parts.
Customization Options
- Load Capacity – customised arms for 500–2000 kg per arm.
- Rack Height – up to 10 metres with safety accessories.
- Arm Length – available in different sizes to fit pipes, panels, and sheets.
- Accessories – stoppers, braces, base plates, and safety locks.
- System Types – Single-sided, Double-sided, Structural, and Mobile Cantilever systems.
Technical Specifications
| Structure Type | Single-sided / Double-sided Cantilever Rack |
|---|---|
| Material | IS-grade Mild Steel / Structural Steel |
| Surface Treatment | Powder coated / Hot-dip galvanised |
| Rack Height | 2000 mm – 10,000 mm |
| Arm Length | 600 mm – 2000 mm |
| Load Capacity | 500 – 2000 kg per arm |
| Levels | 2–8 arm levels (adjustable) |
| Accessories | Stoppers, bracing, base plates, safety locks |
| Compliance | IS/EN standards for racking systems |
