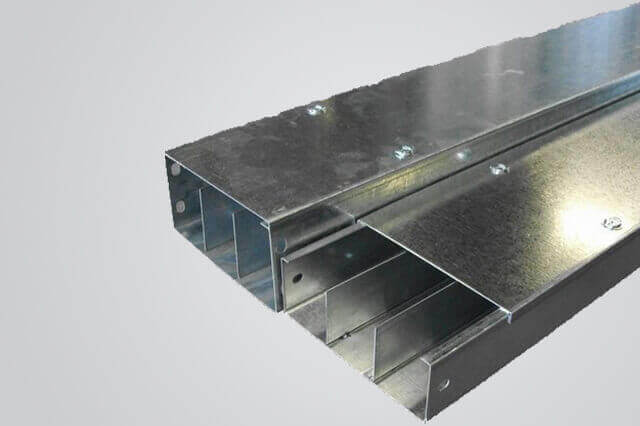

Raceway
Our Raceways provide safe, organised routing of electrical and data cables across industrial plants, commercial buildings, data centres, and warehouses. Built from high-grade steel or aluminium with corrosion-resistant finishes, they ensure neat segregation, easy maintenance access, and long service life.
Key Features
| Types | Raceway (covered), Ladder, Perforated, Wire Mesh |
| Material | CRCA/MS steel, Aluminium, SS (on request) |
| Finish | Powder coated, Pre-galvanised, Hot-dip galvanised |
| Width / Depth | 50–1000 mm width; 25–150 mm depth (custom) |
| Accessories | Bends, tees, reducers, couplers, covers, drop-outs |
| Mounting | Ceiling-suspended, wall-mounted, or floor stands |
Raceway – Product Overview
Prince Foils Products manufactures a full range of cable containment systems including covered raceways for protected runs, perforated trays for ventilation, and ladder trays for heavy cable bundles. Systems are engineered for quick on-site assembly with a comprehensive set of fittings for direction changes and level drops.
How It Works
Raceways form enclosed pathways that protect cables from dust and mechanical impact, while perforated and ladder trays offer support and heat dissipation for power and control cables. Accessories like bends, tees, reducers and drop-outs enable neat, code-compliant routing across plant utilities.
Applications
- Industrial & Utilities – power/control cable management.
- Commercial Buildings – office and retail electrical runs.
- Data Centres – segregated pathways for power & network.
- Warehouses – safe overhead cable routing.
- Healthcare & Pharma – clean, inspectable cable layouts.
Customization Options
- Size & gauge – widths 50–1000 mm; gauges as per load span.
- Material & finish – MS/Aluminium with powder coat or galvanising.
- Covers & segregation – dust covers, dividers for power/data separation.
- Mounting – ceiling rods, wall brackets, floor stands, trapeze hangers.
- Fittings – horizontal/vertical bends, tees, cross, reducers, end caps.
Technical Specifications
| System Type | Raceway (covered) / Perforated / Ladder / Wire mesh |
|---|---|
| Material | CRCA/MS steel, Aluminium; SS on request |
| Surface Treatment | Powder coated / Pre-galvanised / Hot-dip galvanised |
| Standard Widths | 50, 100, 150, 200, 300, 450, 600, 900, 1000 mm (custom on request) |
| Depths | 25 – 150 mm |
| Thickness | 0.8 – 3.0 mm depending on span/load |
| Accessories | Covers, bends (H/V), tees, cross, reducers, drop-outs, couplers, clamps |
| Mounting Hardware | Threaded rods, trapeze hangers, wall brackets, floor stands |
| Standards | Designed to relevant IS/IEC guidelines; site-specific codes as required |
Product Documents
Download these documents for detailed information about our Raceway :
