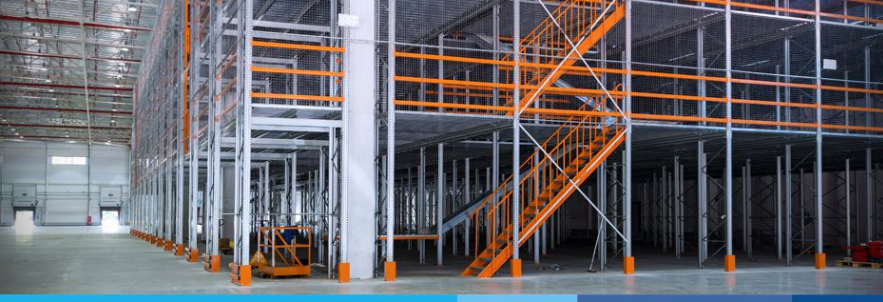

Three Tier / Multi Tier Racks
Our Three Tier / Multi Tier Racks provide a high-density storage solution where floor space is limited but vertical height can be utilised. Designed for manual picking and light to medium loads, these racks are ideal for e-commerce, spares, and inventory management systems that demand fast accessibility and maximum storage efficiency.
Key Features
| Levels | Up to 3–4 tiers |
| System Height | Up to 12 meters |
| Load Capacity | 100 – 1500 kg per shelf (customisable) |
| Aisle Access | Staircases, catwalks, handrails |
| Decking | Steel panels, mesh decks, or plywood/MDF |
| Finish | Powder coated or galvanised |
Three Tier / Multi Tier Racks – Product Overview
Prince Foils Products manufactures Three Tier / Multi Tier Racks designed to accommodate light and medium-duty storage across multiple levels. These racks are particularly suited for businesses managing large SKU inventories, small parts, and order-picking operations.
How It Works
The system consists of shelving racks stacked vertically into two, three, or more tiers. Access is provided through staircases and walkways, allowing operators to pick items at each level. The modular design enables flexible expansion as inventory grows.
Typical configurations include:
- Two-tier racks – doubles available storage space while maintaining accessibility.
- Three-tier racks – high-density storage for spare parts, cartons, and small SKUs.
- Four-tier systems – maximises vertical storage where ceiling height allows.
Applications
- E-commerce & Fulfilment – high-SKU inventory, fast picking.
- Automotive – spares, tools, small components.
- Retail & Wholesale – stockrooms with diverse products.
- Pharmaceutical & Healthcare – medicines, supplies, consumables.
- Archives & Libraries – multi-level file/document storage.
Technical Specifications
| System Type | Multi-level shelving system |
|---|---|
| Material | High-grade MS uprights, beams, and panels |
| Surface Treatment | Powder coated / Hot-dip galvanised |
| System Height | Up to 12,000 mm (site-dependent) |
| Load Capacity | 100 – 1500 kg per shelf (customised as needed) |
| Tiers | 2–4 levels (customisable) |
| Decking Options | Steel panels, mesh decking, plywood/MDF |
| Access | Staircases, walkways, catwalks with handrails |
| Safety | Handrails, toe-boards, anti-slip walkways |
| Mounting | Floor anchored with bolts/plates |
| Usage | Manual picking for light/medium loads |
