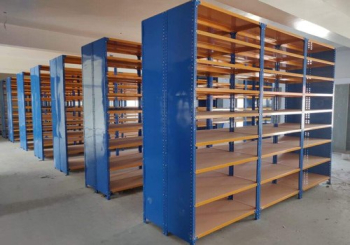

Slotted Angle Racks
Slotted Angle Racks are one of the most cost-effective and versatile storage solutions, widely used across industries for light to medium load applications. With adjustable shelves and a modular design, they are ideal for warehouses, offices, retail stores, libraries, and archives.
Key Features
| Load Capacity | 50 – 250 kg per shelf |
| System Height | Up to 3 – 4 meters |
| Shelf Levels | 2 – 8 (adjustable) |
| Shelf Options | Steel panels, wooden boards, or mesh |
| Material | Slotted angle sections in MS |
| Finish | Powder coated or painted |
Slotted Angle Racks – Product Overview
Prince Foils Products manufactures high-quality slotted angle racks that are modular, durable, and highly economical. The adjustable shelves allow easy customisation, making them suitable for dynamic storage requirements across multiple industries.
How It Works
Slotted angle uprights are used with shelves made of steel, wood, or mesh. Shelves can be adjusted at different heights using bolts and nuts through the slots, allowing flexibility for various item sizes.
Applications
- Warehouses – light goods, cartons, consumables.
- Offices & Archives – files, folders, and documents.
- Retail & Shops – stock display and backroom storage.
- Libraries – books, journals, catalogues.
- Pharmaceuticals – light storage of medicines and equipment.
Customization Options
- Size – available in multiple heights, depths, and lengths.
- Shelf Type – choose from steel panels, wooden boards, or mesh decks.
- Load Capacity – tailored for light to medium loads.
- Accessories – dividers, back/side panels, label holders.
- Finish – powder-coated or enamel painted in multiple colours.
Technical Specifications
| System Type | Slotted angle shelving system |
|---|---|
| Material | Mild Steel angles and uprights |
| Surface Treatment | Powder coated / Painted |
| Height | Up to 4000 mm |
| Depth | 300 – 900 mm |
| Shelf Levels | 2 – 8 adjustable shelves |
| Load Capacity | 50 – 250 kg per shelf |
| Mounting | Bolted structure, free-standing or floor-anchored |
| Accessories | Dividers, back/side sheets, label holders |
| Usage | Manual storage of light to medium items |
