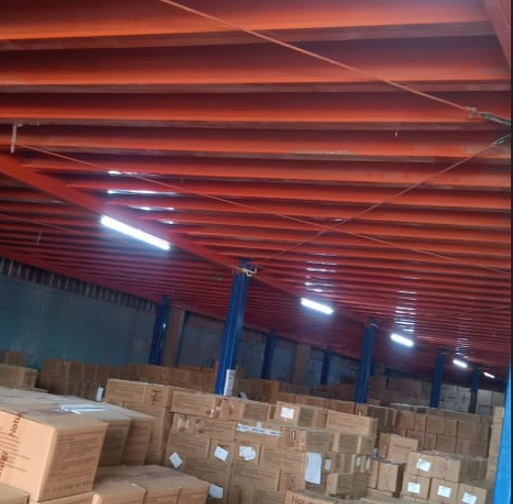

Mezzanine Floors
We design and manufacture high-performance Mezzanine Floors that instantly create additional floor space without expanding your building footprint. Ideal for warehouses, manufacturing, e-commerce and retail, our modular systems are engineered for fast installation, superior safety, and long-term durability.
Key Features
| Platform Height | Up to 10–12 meters (single / multi-level) |
| Bay / Span Length | Up to 6 meters (custom grid) |
| Decking Options | Chequered steel plate, MS perforated, MDF/plywood, GRP/mesh grating |
| Operation | Staircases, pallet gates, handrails; compatible with conveyors & lifts |
| Material | IS-grade Mild Steel (columns, beams, joists) |
| Finish | Powder coated or hot-dip galvanised |
Mezzanine Floors – Product Overview
Prince Foils Products , based in J&K, is a leading manufacturer and supplier of modular Mezzanine Floors in India. With three decades of engineering expertise, we deliver free-standing and rack-supported mezzanines that maximise vertical volume, improve process flow, and reduce cost per square foot.
Our structures are fabricated from high-grade MS sections and finished with industrial powder coating or galvanising for corrosion resistance. Systems are designed according to your loading, aisle, and MHE (forklift/pallet truck/conveyor) requirements.
How It Works
Mezzanines create an intermediate floor supported by columns and main beams. Decking is fixed over secondary joists to form a safe walking and storage surface. Access is provided via staircases and pallet loading gates; optional conveyors or goods lifts enable fast material movement.
Common layouts include:
- Free-standing mezzanine – independent steel structure for offices, kitting or storage.
- Rack-supported (catwalk) – integrates with racking for high-density picking.
- Multi-tier – two or more levels to multiply usable area for e-commerce or spares.
Applications of Mezzanine Floors
- Warehouses & 3PL – pick/pack zones, returns, VAS areas.
- Manufacturing – line-side storage, maintenance platforms, tool rooms.
- E-commerce & Retail – small parts, apparel, showrooms, back-of-house.
- Offices & Control Rooms – admin cabins built on/under mezzanine.
- Pharma & FMCG – batch segregation, compliance-friendly layouts.
Customization Options
- Platform height & grid – column spacing, clear height below, headroom above.
- Floor loading – 300 to 1000 kg/m² (or as specified).
- Decking – steel plate, MDF/ply, mesh/grating with anti-slip options.
- Access & safety – stair width, handrails (≈1100 mm), pallet gates, kickplates.
- Integration – conveyors, carton flow, lighting, sprinklers (as per site).
- Finish – powder-coated in custom RAL shades or galvanised for harsh environments.
Technical Specifications
| Structure Type | Free-standing / Rack-supported (catwalk) |
|---|---|
| Material | IS-grade MS columns, main & secondary beams/joists |
| Surface Treatment | Powder coated / Hot-dip galvanised |
| Platform Height | 2.4 m to 12 m (single or multi-tier) |
| Column Grid | 3 m to 6 m (customisable) |
| Floor Loading | 300 – 1000 kg/m² (as required) |
| Decking | Chequered steel plate / MDF-ply / mesh or GRP grating |
| Railing Height | ≈1100 mm with toe-boards |
| Staircase Width | 900 – 1200 mm with handrails |
| Clear Height Below | As per MHE/operation (typically 2200 mm+) |
| Mounting | Base plates with floor anchors / chemical anchors |
| Safety Options | Pallet loading gates, kickplates, edge guards, anti-slip deck |
| Compliance | Designed to relevant IS/BS standards and local fire norms |
